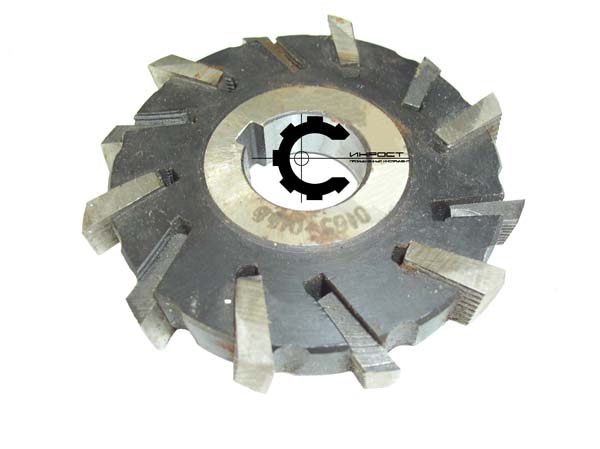

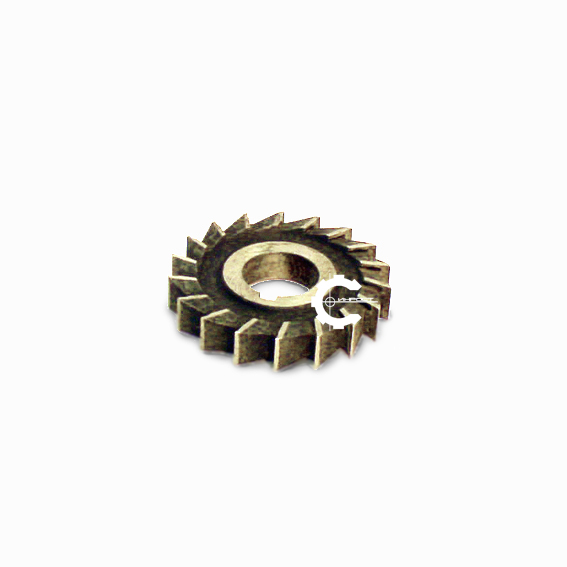

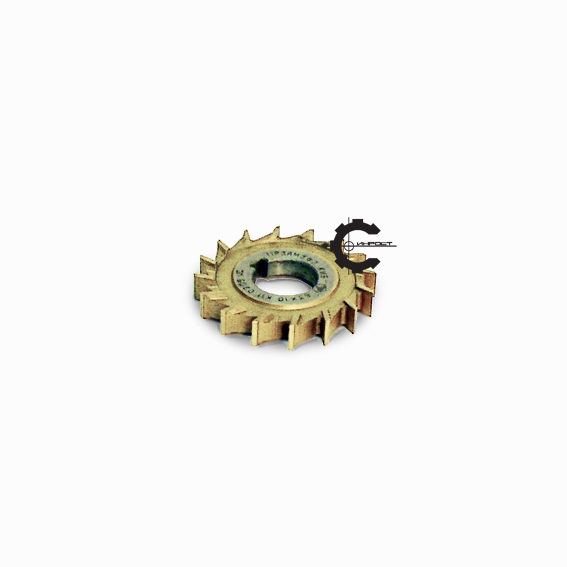

Фрезы дисковые трехсторонные ТИП 1 (ГОСТ 28527-90)
материал: быстрорежущая сталь по ГОСТ 19265-73
назначение: фрезерование пазов и уступов в стальных и чугунных деталях
|
Обозначение
по ГОСТ
|
 |
D, mm
|
|
B, mm
|
|
d, mm
|
|
Число
зубьев
|
|
|
2240-0351
|
|
50
|
|
4
|
|
16
|
|
14
|
|
|
2240-0201
|
|
50
|
|
5
|
|
16
|
|
14
|
|
|
2240-0202
|
|
50
|
|
6
|
|
16
|
|
14
|
|
|
2240-0357
|
|
50
|
|
7
|
|
16
|
|
14
|
|
|
2240-0361
|
|
50
|
|
8
|
|
16
|
|
14
|
|
|
2240-0365
|
|
50
|
|
10
|
|
16
|
|
14
|
|
|
2240-0367
|
|
63
|
|
4
|
|
22
|
|
16
|
|
|
2240-0371
|
|
63
|
|
5
|
|
22
|
|
16
|
|
|
2240-0203
|
|
63
|
|
6
|
|
22
|
|
16
|
|
|
2240-0375
|
|
63
|
|
7
|
|
22
|
|
16
|
|
|
2240-0204
|
|
63
|
|
8
|
|
22
|
|
16
|
|
|
2240-0205
|
|
63
|
|
10
|
|
22
|
|
16
|
|
|
2240-0387
|
|
63
|
|
14
|
|
22
|
|
16
|
|
|
2240-0391
|
|
63
|
|
16
|
|
22
|
|
16
|
|
|
2240-0393
|
|
80
|
|
5
|
|
27
|
|
18
|
|
|
2240-0395
|
|
80
|
|
6
|
|
27
|
|
18
|
|
|
2240-0397
|
|
80
|
|
7
|
|
27
|
|
18
|
|
|
2240-0207
|
|
80
|
|
8
|
|
27
|
|
18
|
|
|
2240-0208
|
|
80
|
|
10
|
|
27
|
|
18
|
|
|
2240-0209
|
|
80
|
|
12
|
|
27
|
|
18
|
|
|
2240-0210
|
|
80
|
|
14
|
|
27
|
|
18
|
|
|
2240-0413
|
|
80
|
|
16
|
|
27
|
|
18
|
|
|
2240-0415
|
|
80
|
|
18
|
|
27
|
|
18
|
|
|
2240-0417
|
|
80
|
|
20
|
|
27
|
|
18
|
|
|
2240-0421
|
|
100
|
|
6
|
|
32
|
|
20
|
|
|
2240-0423
|
|
100
|
|
7
|
|
32
|
|
20
|
|
|
2240-0425
|
|
100
|
|
8
|
|
32
|
|
20
|
|
|
2240-0211
|
|
100
|
|
10
|
|
32
|
|
20
|
|
|
2240-0212
|
|
100
|
|
12
|
|
32
|
|
20
|
|
|
2240-0213
|
|
100
|
|
14
|
|
32
|
|
20
|
|
|
2240-0206
|
|
63
|
|
12
|
|
22
|
|
16
|
|
|
2240-0214
|
|
100
|
|
16
|
|
32
|
|
20
|
|
|
2240-0443
|
|
100
|
|
18
|
|
32
|
|
20
|
|
|
2240-0445
|
|
100
|
|
20
|
|
32
|
|
20
|
|
|
|
Обозначение
по ГОСТ
|
|
D, mm
|
|
B, mm
|
|
d, mm
|
|
Число
зубьев
|
|
|
2240-0447
|
|
100
|
|
22
|
|
32
|
|
20
|
|
|
2240-0451
|
|
100
|
|
25
|
|
32
|
|
20
|
|
|
2240-0453
|
|
125
|
|
8
|
|
32
|
|
22
|
|
|
2240-0457
|
|
125
|
|
10
|
|
32
|
|
22
|
|
|
2240-0461
|
|
125
|
|
12
|
|
32
|
|
22
|
|
|
2240-0463
|
|
125
|
|
14
|
|
32
|
|
22
|
|
|
2240-0465
|
|
125
|
|
16
|
|
32
|
|
22
|
|
|
2240-0467
|
|
125
|
|
18
|
|
32
|
|
22
|
|
|
2240-0471
|
|
125
|
|
20
|
|
32
|
|
22
|
|
|
2240-0473
|
|
125
|
|
22
|
|
32
|
|
22
|
|
|
2240-0475
|
|
125
|
|
25
|
|
32
|
|
22
|
|
|
2240-0477
|
|
125
|
|
28
|
|
32
|
|
22
|
|
|
2240-0551
|
|
160
|
|
10
|
|
40
|
|
24
|
|
|
2240-0552
|
|
160
|
|
12
|
|
40
|
|
24
|
|
|
2240-0553
|
|
160
|
|
14
|
|
40
|
|
24
|
|
|
2240-0554
|
|
160
|
|
16
|
|
40
|
|
24
|
|
|
2240-0555
|
|
160
|
|
18
|
|
40
|
|
24
|
|
|
2240-0556
|
|
160
|
|
20
|
|
40
|
|
24
|
|
|
2240-0557
|
|
160
|
|
22
|
|
40
|
|
24
|
|
|
2240-0558
|
|
160
|
|
25
|
|
40
|
|
24
|
|
|
2240-0559
|
|
160
|
|
28
|
|
40
|
|
24
|
|
|
2240-0561
|
|
160
|
|
32
|
|
40
|
|
24
|
|
|
2240-0562
|
|
200
|
|
12
|
|
40
|
|
26
|
|
|
2240-0563
|
|
200
|
|
14
|
|
40
|
|
26
|
|
|
2240-0564
|
|
200
|
|
16
|
|
40
|
|
26
|
|
|
2240-0565
|
|
200
|
|
18
|
|
40
|
|
26
|
|
|
2240-0566
|
|
200
|
|
20
|
|
40
|
|
26
|
|
|
2240-0567
|
|
200
|
|
22
|
|
40
|
|
26
|
|
|
2240-0568
|
|
200
|
|
25
|
|
40
|
|
26
|
|
|
2240-0569
|
|
200
|
|
28
|
|
40
|
|
26
|
|
|
2240-0571
|
|
200
|
|
32
|
|
40
|
|
26
|
|
|
2240-0572
|
|
200
|
|
36
|
|
40
|
|
26
|
|
|
2240-0573
|
|
200
|
|
40
|
|
40
|
|
26
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

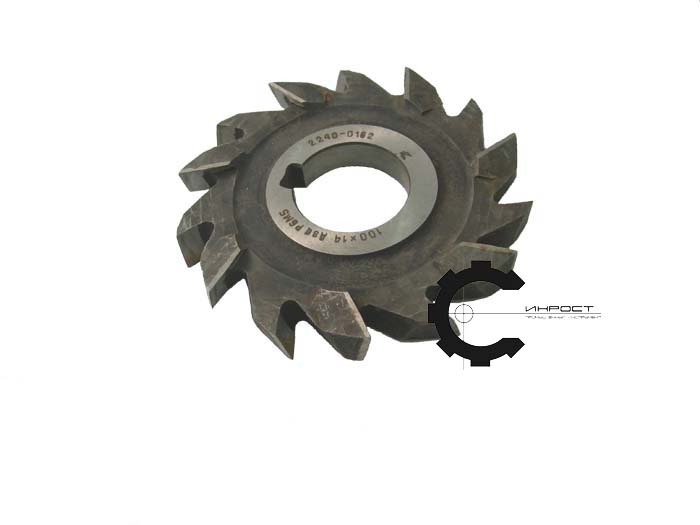

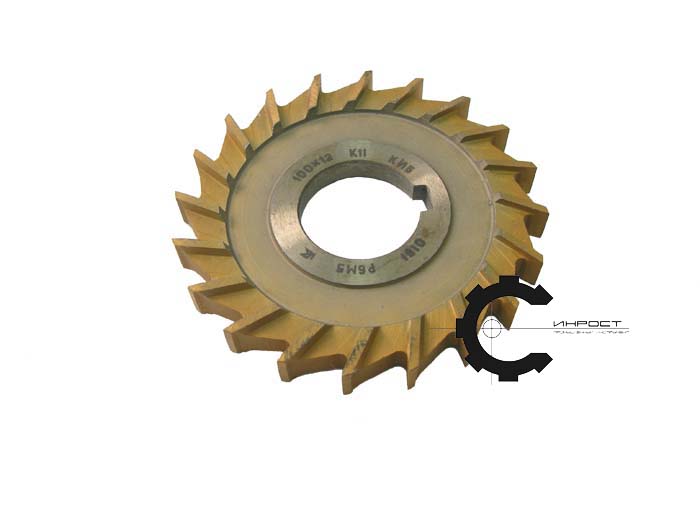

Фрезы дисковые трехсторонные с разнонаправленными зубьями ТИП 2 (ГОСТ 28527-90)
Исполнение 1 - с мелким зубом
Исполнение 2 - с нормальным зубом
материал: быстрорежущая сталь по ГОСТ 19265-73
назначение: фрезерование пазов и уступов в стальных и чугунных деталях
|
Обозначение по ГОСТ
|
|
D, mm
|
|
B, mm
|
|
d, mm
|
|
Число зубьев
|
|
|
|
Исп.1
|
|
Исп. 2
|
Исп.1
|
|
Исп. 2
|
|
|
2240-0601
|
|
2240-0801
|
|
50
|
|
4
|
|
16
|
|
2x7
|
|
2x6
|
|
|
2240-0602
|
|
2240-0802
|
|
50
|
|
5
|
|
16
|
|
2x7
|
|
2x6
|
|
|
2240-0603
|
|
2240-0803
|
|
50
|
|
6
|
|
16
|
|
2x7
|
|
2x6
|
|
|
2240-0604
|
|
2240-0804
|
|
50
|
|
7
|
|
16
|
|
2x7
|
|
2x6
|
|
|
2240-0605
|
|
2240-0805
|
|
50
|
|
8
|
|
16
|
|
2x7
|
|
2x6
|
|
|
2240-0606
|
|
2240-0806
|
|
50
|
|
10
|
|
16
|
|
2x7
|
|
2x6
|
|
|
2240-0607
|
|
2240-0807
|
|
63
|
|
4
|
|
22
|
|
2x8
|
|
2x6
|
|
|
2240-0608
|
|
2240-0808
|
|
63
|
|
5
|
|
22
|
|
2x8
|
|
2x6
|
|
|
2240-0101
|
|
2240-0151
|
|
63
|
|
6
|
|
22
|
|
2x8
|
|
2x6
|
|
|
2240-0609
|
|
2240-0809
|
|
63
|
|
7
|
|
22
|
|
2x8
|
|
2x6
|
|
|
2240-0102
|
|
2240-0152
|
|
63
|
|
8
|
|
22
|
|
2x8
|
|
2x6
|
|
|
2240-0103
|
|
2240-0153
|
|
63
|
|
10
|
|
22
|
|
2x8
|
|
2x6
|
|
|
2240-0104
|
|
2240-0154
|
|
63
|
|
12
|
|
22
|
|
2x8
|
|
2x6
|
|
|
2240-0251
|
|
2240-0259
|
|
63
|
|
14
|
|
22
|
|
2x8
|
|
2x6
|
|
|
2240-0252
|
|
2240-0261
|
|
63
|
|
16
|
|
22
|
|
2x8
|
|
2x6
|
|
|
2240-0611
|
|
2240-0811
|
|
80
|
|
5
|
|
27
|
|
2x9
|
|
2x7
|
|
|
2240-0612
|
|
2240-0812
|
|
80
|
|
6
|
|
27
|
|
2x9
|
|
2x7
|
|
|
2240-0613
|
|
2240-0813
|
|
80
|
|
7
|
|
27
|
|
2x9
|
|
2x7
|
|
|
2240-0105
|
|
2240-0155
|
|
80
|
|
8
|
|
27
|
|
2x9
|
|
2x7
|
|
|
2240-0106
|
|
2240-0156
|
|
80
|
|
10
|
|
27
|
|
2x9
|
|
2x7
|
|
|
2240-0107
|
|
2240-0157
|
|
80
|
|
12
|
|
27
|
|
2x9
|
|
2x7
|
|
|
2240-0108
|
|
2240-0158
|
|
80
|
|
14
|
|
27
|
|
2x9
|
|
2x7
|
|
|
2240-0109
|
|
2240-0159
|
|
80
|
|
16
|
|
27
|
|
2x9
|
|
2x7
|
|
|
2240-0253
|
|
2240-0262
|
|
80
|
|
18
|
|
27
|
|
2x9
|
|
2x7
|
|
|
2240-0254
|
|
2240-0263
|
|
80
|
|
20
|
|
27
|
|
2x9
|
|
2x7
|
|
|
2240-0614
|
|
2240-0814
|
|
100
|
|
6
|
|
32
|
|
2x10
|
|
2x7
|
|
|
2240-0615
|
|
2240-0815
|
|
100
|
|
7
|
|
32
|
|
2x10
|
|
2x7
|
|
|
2240-0616
|
|
2240-0816
|
|
100
|
|
8
|
|
32
|
|
2x10
|
|
2x7
|
|
|
2240-0110
|
|
2240-0160
|
|
100
|
|
10
|
|
32
|
|
2x10
|
|
2x7
|
|
|
2240-0111
|
|
2240-0161
|
|
100
|
|
12
|
|
32
|
|
2x10
|
|
2x7
|
|
|
2240-0112
|
|
2240-0162
|
|
100
|
|
14
|
|
32
|
|
2x10
|
|
2x7
|
|
|
2240-0113
|
|
2240-0163
|
|
100
|
|
16
|
|
32
|
|
2x10
|
|
2x7
|
|
|
2240-0114
|
|
2240-0164
|
|
100
|
|
18
|
|
32
|
|
2x10
|
|
2x7
|
|
|
2240-0115
|
|
2240-0165
|
|
100
|
|
20
|
|
32
|
|
2x10
|
|
2x7
|
|
|
2240-0255
|
|
2240-0264
|
|
100
|
|
22
|
|
32
|
|
2x10
|
|
2x7
|
|
|
2240-0256
|
|
2240-0265
|
|
100
|
|
25
|
|
32
|
|
2x10
|
|
2x7
|
|
|
2240-0617
|
|
2240-0817
|
|
125
|
|
8
|
|
32
|
|
2x11
|
|
2x9
|
|
|
2240-0618
|
|
2240-0818
|
|
125
|
|
10
|
|
32
|
|
2x11
|
|
2x9
|
|
|
2240-0116
|
|
2240-0166
|
|
125
|
|
12
|
|
32
|
|
2x11
|
|
2x9
|
|
|
2240-0117
|
|
2240-0167
|
|
125
|
|
14
|
|
32
|
|
2x11
|
|
2x9
|
|
|
2240-0118
|
|
2240-0168
|
|
125
|
|
16
|
|
32
|
|
2x11
|
|
2x9
|
|
|
2240-0119
|
|
2240-0169
|
|
125
|
|
18
|
|
32
|
|
2x11
|
|
2x9
|
|
|
2240-0120
|
|
2240-0170
|
|
125
|
|
20
|
|
32
|
|
2x11
|
|
2x9
|
|
|
2240-0121
|
|
2240-0171
|
|
125
|
|
22
|
|
32
|
|
2x11
|
|
2x9
|
|
|
2240-0257
|
|
2240-0266
|
|
125
|
|
25
|
|
32
|
|
2x11
|
|
2x9
|
|
|
2240-0258
|
|
2240-0267
|
|
125
|
|
28
|
|
32
|
|
2x11
|
|
2x9
|
|
|
2240-0619
|
|
2240-0819
|
|
160
|
|
10
|
|
40
|
|
2x12
|
|
2x10
|
|
|
2240-0621
|
|
2240-0821
|
|
160
|
|
12
|
|
40
|
|
2x12
|
|
2x10
|
|
|
2240-0622
|
|
2240-0822
|
|
160
|
|
14
|
|
40
|
|
2x12
|
|
2x10
|
|
|
2240-0623
|
|
2240-0823
|
|
160
|
|
16
|
|
40
|
|
2x12
|
|
2x10
|
|
|
2240-0624
|
|
2240-0824
|
|
160
|
|
18
|
|
40
|
|
2x12
|
|
2x10
|
|
|
2240-0625
|
|
2240-0825
|
|
160
|
|
20
|
|
40
|
|
2o12
|
|
2x10
|
|
|
2240-0626
|
|
2240-0826
|
|
160
|
|
22
|
|
40
|
|
2x12
|
|
2x10
|
|
|
2240-0627
|
|
2240-0827
|
|
160
|
|
25
|
|
40
|
|
2x12
|
|
2x10
|
|
|
2240-0628
|
|
2240-0828
|
|
160
|
|
28
|
|
40
|
|
2x12
|
|
2x10
|
|
|
2240-0629
|
|
2240-0829
|
|
160
|
|
32
|
|
40
|
|
2x12
|
|
2x10
|
|
|
2240-0631
|
|
2240-0831
|
|
200
|
|
12
|
|
40
|
|
2x13
|
|
2x11
|
|
|
2240-0632
|
|
2240-0832
|
|
200
|
|
14
|
|
40
|
|
2x13
|
|
2x11
|
|
|
2240-0633
|
|
2240-0833
|
|
200
|
|
16
|
|
40
|
|
2x13
|
|
2x11
|
|
|
2240-0634
|
|
2240-0834
|
|
200
|
|
18
|
|
40
|
|
2x13
|
|
2x11
|
|
|
2240-0635
|
|
2240-0835
|
|
200
|
|
20
|
|
40
|
|
2x13
|
|
2x11
|
|
|
2240-0636
|
|
2240-0836
|
|
200
|
|
22
|
|
40
|
|
2x13
|
|
2x11
|
|
|
2240-0637
|
|
2240-0837
|
|
200
|
|
25
|
|
40
|
|
2x13
|
|
2x11
|
|
|
2240-0638
|
|
2240-0838
|
|
200
|
|
28
|
|
40
|
|
2x13
|
|
2x11
|
|
|
2240-0639
|
|
2240-0839
|
|
200
|
|
32
|
|
40
|
|
2x13
|
|
2x11
|
|
|
2240-0641
|
|
2240-0841
|
|
200
|
|
36
|
|
40
|
|
2x13
|
|
2x11
|
|
|
2240-0642
|
|
2240-0842
|
|
200
|
|
40
|
|
40
|
|
2x13
|
|
2x11
|
|
Фрезы дисковые пазовые (ГОСТ 3964-69)
материал: быстрорежущая сталь по ГОСТ 19265-73
назначение: фрезерование точных неглубоких пазов и прорезей в стальных и чугунных деталях
|
Обозначение
по ГОСТ
|
|
D, mm
|
|
B, mm
|
|
d, mm
|
|
Число
зубьев
|
|
|
2250-0001
|
|
50
|
|
3
|
|
16
|
|
14
|
|
|
2250-0002
|
|
50
|
|
4
|
|
16
|
|
14
|
|
|
2250-0003
|
|
50
|
|
5
|
|
16
|
|
14
|
|
|
2250-0004
|
|
50
|
|
6
|
|
16
|
|
14
|
|
|
2250-0101
|
|
50
|
|
8
|
|
16
|
|
14
|
|
|
2250-0102
|
|
50
|
|
10
|
|
16
|
|
14
|
|
|
2250-0103
|
|
63
|
|
4
|
|
22
|
|
16
|
|
|
2250-0005
|
|
63
|
|
5
|
|
22
|
|
16
|
|
|
2250-0006
|
|
63
|
|
6
|
|
22
|
|
16
|
|
|
2250-0007
|
|
63
|
|
8
|
|
22
|
|
16
|
|
|
2250-0104
|
|
63
|
|
10
|
|
22
|
|
16
|
|
|
2250-0105
|
|
63
|
|
12
|
|
22
|
|
16
|
|
|
2250-0106
|
|
63
|
|
14
|
|
22
|
|
16
|
|
|
2250-0107
|
|
80
|
|
5
|
|
27
|
|
18
|
|
|
2250-0108
|
|
80
|
|
6
|
|
27
|
|
18
|
|
|
2250-0008
|
|
80
|
|
8
|
|
27
|
|
18
|
|
|
2250-0009
|
|
80
|
|
10
|
|
27
|
|
18
|
|
|
2250-0010
|
|
80
|
|
12
|
|
27
|
|
18
|
|
|
2250-0109
|
|
80
|
|
14
|
|
27
|
|
18
|
|
|
2250-0111
|
|
80
|
|
16
|
|
27
|
|
18
|
|
|
2250-0112
|
|
80
|
|
18
|
|
27
|
|
18
|
|
|
2250-0113
|
|
100
|
|
6
|
|
32
|
|
20
|
|
|
2250-0114
|
|
100
|
|
8
|
|
32
|
|
20
|
|
|
2250-0011
|
|
100
|
|
10
|
|
32
|
|
20
|
|
|
2250-0012
|
|
100
|
|
12
|
|
32
|
|
20
|
|
|
2250-0013
|
|
100
|
|
14
|
|
32
|
|
20
|
|
|
2250-0014
|
|
100
|
|
16
|
|
32
|
|
20
|
|
|
2250-0115
|
|
100
|
|
18
|
|
32
|
|
22
|
|
|
2250-0116
|
|
100
|
|
20
|
|
32
|
|
22
|
|
|
|
Обозначение
по ГОСТ
|
|
D, mm
|
|
B, mm
|
|
d, mm
|
|
Число
зубьев
|
|
|
2250-0117
|
|
100
|
|
22
|
|
32
|
|
22
|
|
|
2250-0118
|
|
100
|
|
25
|
|
32
|
|
22
|
|
|
2250-0015
|
|
125
|
|
8
|
|
32
|
|
22
|
|
|
2250-0119
|
|
125
|
|
10
|
|
32
|
|
22
|
|
|
2250-0016
|
|
125
|
|
12
|
|
32
|
|
22
|
|
|
2250-0121
|
|
125
|
|
14
|
|
32
|
|
22
|
|
|
2250-0017
|
|
125
|
|
16
|
|
32
|
|
22
|
|
|
2250-0122
|
|
125
|
|
18
|
|
32
|
|
22
|
|
|
2250-0018
|
|
125
|
|
20
|
|
32
|
|
22
|
|
|
2250-0123
|
|
125
|
|
22
|
|
32
|
|
22
|
|
|
2250-0019
|
|
125
|
|
25
|
|
32
|
|
22
|
|
|
2250-0124
|
|
160
|
|
10
|
|
40
|
|
24
|
|
|
2250-0125
|
|
160
|
|
12
|
|
40
|
|
24
|
|
|
2250-0126
|
|
160
|
|
14
|
|
40
|
|
24
|
|
|
2250-0127
|
|
160
|
|
16
|
|
40
|
|
24
|
|
|
2250-0128
|
|
160
|
|
18
|
|
40
|
|
24
|
|
|
2250-0129
|
|
160
|
|
20
|
|
40
|
|
24
|
|
|
2250-0131
|
|
160
|
|
22
|
|
40
|
|
24
|
|
|
2250-0132
|
|
160
|
|
25
|
|
40
|
|
24
|
|
|
2250-0133
|
|
160
|
|
28
|
|
40
|
|
24
|
|
|
2250-0134
|
|
160
|
|
32
|
|
40
|
|
24
|
|
|
2250-0135
|
|
200
|
|
12
|
|
40
|
|
26
|
|
|
2250-0136
|
|
200
|
|
14
|
|
40
|
|
26
|
|
|
2250-0137
|
|
200
|
|
16
|
|
40
|
|
26
|
|
|
2250-0138
|
|
200
|
|
18
|
|
40
|
|
26
|
|
|
2250-0139
|
|
200
|
|
20
|
|
40
|
|
26
|
|
|
2250-0141
|
|
200
|
|
22
|
|
40
|
|
26
|
|
|
2250-0142
|
|
200
|
|
25
|
|
40
|
|
26
|
|
|
2250-0143
|
|
200
|
|
28
|
|
40
|
|
26
|
|
|
|
Фрезы дисковые пазовые затылованные (ГОСТ 8543-71)
материал: быстрорежущая сталь по ГОСТ 19265-73
назначение: фрезерование размерных пазов и прорезей в стальных и чугунных деталях
|
Обозначение
по ГОСТ
|
|
D, mm
|
|
B, mm
|
|
d, mm
|
|
Число
зубьев
|
|
|
2250-0051
|
|
50
|
|
4
|
|
16
|
|
12
|
|
|
2250-0052
|
|
50
|
|
5
|
|
16
|
|
12
|
|
|
2250-0053
|
|
50
|
|
6
|
|
16
|
|
12
|
|
|
2250-0251
|
|
50
|
|
8
|
|
16
|
|
12
|
|
|
2250-0252
|
|
50
|
|
10
|
|
16
|
|
12
|
|
|
2250-0253
|
|
63
|
|
4
|
|
22
|
|
12
|
|
|
2250-0054
|
|
63
|
|
5
|
|
22
|
|
12
|
|
|
2250-0055
|
|
63
|
|
6
|
|
22
|
|
12
|
|
|
2250-0056
|
|
63
|
|
7
|
|
22
|
|
12
|
|
|
2250-0057
|
|
63
|
|
8
|
|
22
|
|
12
|
|
|
2250-0254
|
|
63
|
|
10
|
|
22
|
|
12
|
|
|
2250-0255
|
|
63
|
|
12
|
|
22
|
|
12
|
|
|
2250-0256
|
|
63
|
|
14
|
|
22
|
|
12
|
|
|
2250-0257
|
|
80
|
|
5
|
|
27
|
|
12
|
|
|
2250-0258
|
|
80
|
|
6
|
|
27
|
|
12
|
|
|
2250-0058
|
|
80
|
|
7
|
|
27
|
|
12
|
|
|
2250-0059
|
|
80
|
|
8
|
|
27
|
|
12
|
|
|
2250-0060
|
|
80
|
|
10
|
|
27
|
|
12
|
|
|
2250-0061
|
|
80
|
|
12
|
|
27
|
|
12
|
|
|
2250-0259
|
|
80
|
|
14
|
|
27
|
|
12
|
|
|
2250-0261
|
|
80
|
|
16
|
|
27
|
|
12
|
|
|
2250-0262
|
|
80
|
|
18
|
|
27
|
|
12
|
|
|
2250-0263
|
|
100
|
|
6
|
|
32
|
|
14
|
|
|
2250-0264
|
|
100
|
|
8
|
|
32
|
|
14
|
|
|
2250-0062
|
|
100
|
|
10
|
|
32
|
|
14
|
|
|
2250-0063
|
|
100
|
|
12
|
|
32
|
|
14
|
|
|
2250-0064
|
|
100
|
|
14
|
|
32
|
|
14
|
|
|
2250-0065
|
|
100
|
|
16
|
|
32
|
|
14
|
|
|
2250-0265
|
|
100
|
|
18
|
|
32
|
|
14
|
|
|
2250-0266
|
|
100
|
|
20
|
|
32
|
|
14
|
|
|
2250-0267
|
|
100
|
|
22
|
|
32
|
|
14
|
|
|
|
Обозначение
по ГОСТ
|
|
D, mm
|
|
B, mm
|
|
d, mm
|
|
Число
зубьев
|
|
|
2250-0268
|
|
100
|
|
25
|
|
32
|
|
14
|
|
|
2250-0269
|
|
125
|
|
8
|
|
32
|
|
16
|
|
|
2250-0271
|
|
125
|
|
10
|
|
32
|
|
16
|
|
|
2250-0272
|
|
125
|
|
12
|
|
32
|
|
16
|
|
|
2250-0273
|
|
125
|
|
14
|
|
32
|
|
16
|
|
|
2250-0274
|
|
125
|
|
16
|
|
32
|
|
16
|
|
|
2250-0275
|
|
125
|
|
18
|
|
32
|
|
16
|
|
|
2250-0276
|
|
125
|
|
20
|
|
32
|
|
16
|
|
|
2250-0277
|
|
125
|
|
22
|
|
32
|
|
16
|
|
|
2250-0278
|
|
125
|
|
25
|
|
32
|
|
16
|
|
|
2250-0279
|
|
125
|
|
28
|
|
32
|
|
16
|
|
|
2250-0281
|
|
160
|
|
10
|
|
40
|
|
18
|
|
|
2250-0282
|
|
160
|
|
12
|
|
40
|
|
18
|
|
|
2250-0283
|
|
160
|
|
14
|
|
40
|
|
18
|
|
|
2250-0284
|
|
160
|
|
16
|
|
40
|
|
18
|
|
|
2250-0285
|
|
160
|
|
18
|
|
40
|
|
18
|
|
|
2250-0286
|
|
160
|
|
20
|
|
40
|
|
18
|
|
|
2250-0287
|
|
160
|
|
22
|
|
40
|
|
18
|
|
|
2250-0288
|
|
160
|
|
25
|
|
40
|
|
18
|
|
|
2250-0289
|
|
160
|
|
28
|
|
40
|
|
18
|
|
|
2250-0291
|
|
160
|
|
32
|
|
40
|
|
18
|
|
|
2250-0292
|
|
200
|
|
12
|
|
40
|
|
20
|
|
|
2250-0293
|
|
200
|
|
14
|
|
40
|
|
20
|
|
|
2250-0294
|
|
200
|
|
16
|
|
40
|
|
20
|
|
|
2250-0295
|
|
200
|
|
18
|
|
40
|
|
20
|
|
|
2250-0296
|
|
200
|
|
20
|
|
40
|
|
20
|
|
|
2250-0297
|
|
200
|
|
25
|
|
40
|
|
20
|
|
|
2250-0298
|
|
200
|
|
28
|
|
40
|
|
20
|
|
|
2250-0299
|
|
200
|
|
32
|
|
40
|
|
20
|
|
|
2250-0301
|
|
200
|
|
36
|
|
40
|
|
20
|
|
|
2250-0302
|
|
200
|
|
40
|
|
40
|
|
20
|
|
|
|
Контакты:
360447242
